Advanced Technologies in Electrical Motor Protection: Enhancing Reliability and Fault Mitigation
Georey A. Tajada
College of Industrial- Electrical Technology Department, Negros Oriental State University, Philippines
In industrial and commercial environments, the safety, efficiency, and operational reliability of an application requires the protection of its electrical motors. The advanced motor protection technologies discussed in this study are intelligent relays, thermal monitoring, and predictive maintenance systems. Advanced fault detection, reducing downtime, and optimizing performance is achieved through the integration of smart sensors and IoT-based solutions. This study examines current protection measures, which aid in extending engine life while decreasing repair costs. This brings insights for optimal yet reliable protections for better automation systems.
Keywords: Electrical motor protection, fault detection, smart sensors, predictive maintenance, IoT-based monitoring, thermal protection, intelligent relays.
Motors are widely used in industries and commercial applications for driving machines and tools needed for manufacturing, automation and energy systems. It is essential for the productivity of any organization and helps in the avoidance of costly downtimes. But electrical motors are exposed to a wide range of threats: from overheating and overcurrent conditions to voltage imbalances and mechanical failures. Unless properly protected, these can create the environment for significant damage, excess maintenance costs, and even catastrophic system outages.
Traditional motor protection methods, such as thermal overload relays and circuit breakers, have been effective in preventing basic electrical faults. However, advancements in technology have introduced more sophisticated protection mechanisms that enhance fault detection and mitigation. Intelligent relays, thermal monitoring systems, and predictive maintenance technologies are now widely integrated into motor protection schemes. These innovations not only improve fault diagnosis but also enable real-time monitoring and remote control, allowing for proactive maintenance strategies.
The integration of smart sensors and Internet of Things (IoT)-based solutions further revolutionizes motor protection by providing continuous data collection, analysis, and predictive insights. These technologies enhance decision-making capabilities and allow for preemptive measures before faults escalate into critical failures. As a result, industries can optimize motor performance, extend equipment lifespan, and reduce maintenance costs.
This study aims to explore the latest advancements in electrical motor protection technologies, analyzing their effectiveness in improving reliability and fault mitigation. By examining current trends and innovations, this research provides valuable insights into the development of more robust and intelligent motor protection systems that contribute to enhanced automation and industrial efficiency.

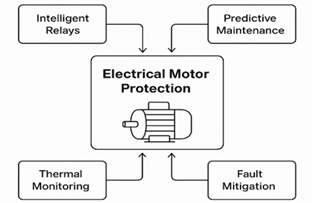

Fig 1. schematic diagram of the key components of an advanced electrical motor protection system
Figure 1 shows the schematic diagram visually represents the key components of an advanced electrical motor protection system. At the center of the diagram is “Electrical Motor Protection,” emphasizing the importance of safeguarding motors from potential faults and failures. Four critical aspects contribute to effective motor protection, each linked to the central system:
The diagram highlights the interconnected nature of these advanced technologies in ensuring optimal motor protection. Together, they enhance reliability, reduce system downtime, and contribute to a more efficient and automated industrial environment.
Table 1 Highlights Of The Major Benefits Of Contemporary Solutions By Contrasting Conventional And Cutting-Edge Motor Protection Systems
| Aspects | Traditional Motor Protection | Advanced Motor Protection |
| Tools utilized | Thermal overload relays, circuit breakers | Intelligent relays, thermal monitoring, IoT-based solutions |
| Fault Detection | Reactive- after fault occurs | Proactive- real-time monitoring, predictive analysis |
| Oversight Functionality | Limited, manual inspection required | Continuous, remote, and automated monitoring |
| Response Time | Slow, requires manual intervention | Fast, automatic response to faults |
| Maintenance Strategy | Corrective- fix after failure | Predictive- prevents failures before they occur |
| System Downtime | High, due to unexpected failures | Low, due to early fault detection and proactive maintenance |
| Protection Against Overheating | Basic thermal overload protection | Advanced thermal imaging and smart sensors for heat monitoring |
| Overall Reliability | Moderate | High |

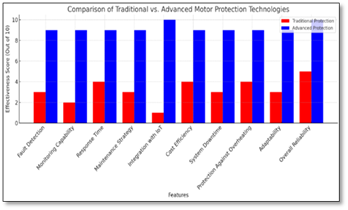

Fig 2. Comparative assessment chart of conventional and modern motor protection technology
Figure 2 presents a comparative assessment of conventional and modern motor protection technologies based on essential features. Conventional protection techniques, including thermal overload relays and circuit breakers, demonstrate reduced efficacy in aspects like fault detection, monitoring capabilities, and response time. These techniques generally depend on reactive maintenance, resulting in increased system downtime and higher long-term expenses.
In comparison, modern motor protection technologies that utilize intelligent relays, IoT-based monitoring, and predictive maintenance achieve significantly higher scores across all assessed areas. Their capacity to offer real-time monitoring, early fault detection, and adaptive protection boosts reliability, minimizes downtime, and maximizes maintenance effectiveness. The incorporation of smart sensors and IoT greatly improves adaptability and cost-efficiency by facilitating automated and remote diagnostics.
The advancements in electrical motor protection technologies have significantly improved fault detection, monitoring, and overall system reliability. Traditional protection methods, while effective for basic fault prevention, often rely on reactive maintenance, leading to increased downtime and higher long-term costs. In contrast, modern solutions—such as intelligent relays, IoT-based monitoring, and predictive maintenance—offer proactive and automated protection, ensuring early fault detection and optimized performance.
By integrating smart sensors and real-time analytics, industries can reduce maintenance costs, enhance system longevity, and improve operational efficiency. The shift toward advanced motor protection technologies is essential for achieving a more reliable, cost-effective, and automated industrial environment. Future developments in IoT and AI-driven diagnostics will further refine these systems, making motor protection more intelligent and adaptive to emerging challenges in industrial automation.
The completion of this study on Advanced Technologies in Electrical Motor Protection: Enhancing Reliability and Fault Mitigation would not have been possible without the invaluable support and contributions of various individuals and institutions.
First and foremost, the researcher expresses his sincere gratitude to Negros Oriental State University for providing the resources and academic environment necessary for conducting this research. The researcher extends his deepest appreciation to his mentors and colleagues, whose guidance and expertise played a crucial role in shaping the direction of this study.
The researcher would also like to acknowledge the industry professionals and engineers who shared their insights on modern motor protection technologies. Their expertise and practical knowledge have been instrumental in enriching the discussion on intelligent relays, IoT-based monitoring, and predictive maintenance.
Finally, the researcher expresses his heartfelt thanks to his families and friends for their unwavering support and encouragement throughout this research journey. Their motivation has been a driving force in the successful completion of this work.
This study is dedicated to the continuous advancement of technology in ensuring the safety, efficiency, and reliability of electrical motor systems in industrial applications.
